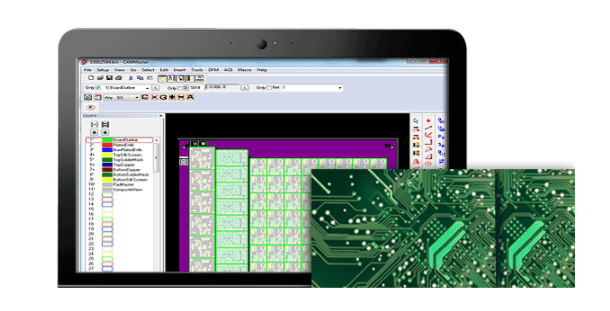

PentaLogix CAMMaster Designer v11.24.72
PentaLogix CAMMaster Designer v11.24.72
PentaLogix CAMMaster Designer v11.24.72 is the Designer’s choice CAM software for the most demanding jobs. Experience the best CAD companion tool in the industry to get your jobs done. Panelization is a snap with all the features available in this package. Netlist extraction and DRC set the industry standard.
Features
Advanced DFM Checks
Netlist Extraction (Contour and Raster)
Netlist Compare
Polygon Merging
Automated Draw To Flash
Select By Intersection
SolderMask Generation
Auto Create Drill File From Pad Master
Venting and Thieving
Highlights
Contour based netlist extraction
Advanced DFM checks
Automated aperture conversion
Layer comparison
NetConvert
Automated draw-to-flash conversion
Soldermask generation
Copper pouring
Silkscreen clipping
Venting & thieving
One year of free technical support
Netlist comparison
And, much more!
